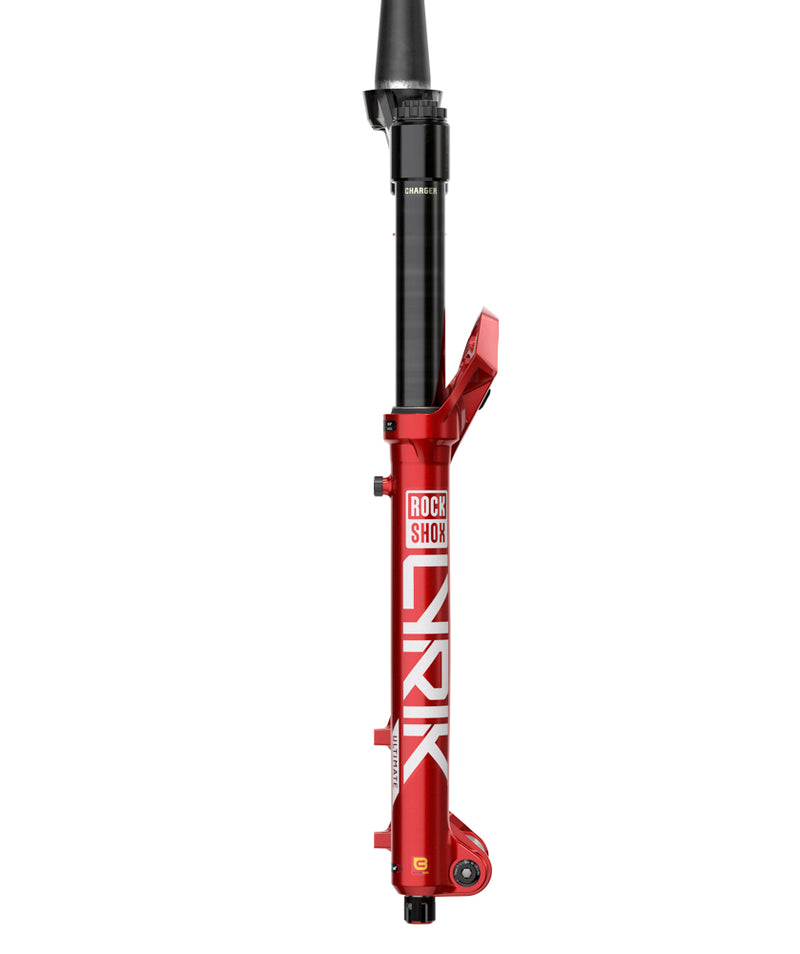

The most versatile fork in our lineup, Lyrik harmonizes descending power with effortless efficiency. Lyrik’s legendary performance enters a new era with the Charger 3.1 RC2 damper that offers a wider tunable range of adjustments for the perfect suspension action. Lyrik Ultimate packs an orchestra of industry-leading tech like the ButterCups technology and a DebonAir+ air spring in a stout 35mm chassis. Now better than ever, Lyrik is ready to push your limits.
FEATURES
- NEW To meet the demands of the world’s best riders, Charger 3.1 is a brilliant evolution of our proven damper platform. With increased damping range and High Speed Compression, Low Speed Compression, and Low Speed Rebound adjustments, Charger 3.1 smooths out the roughest trails.
- NEW Charger 3.1 RC2’s adjustment range is broader—with less compression damping in the LSC open position and additional support in the HSC closed position, you get the traction, control, and comfort you need to charge dicey lines all day.
- NEW Ever on the quest to eliminate friction, a new bushing package further reduces friction with an updated process at the factory level to give riders a better feel right out of the box.
- ButterCups block 20% of high-frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- DebonAir+ air spring is built to strike the perfect balance of what riders really want: a butterlike small bump feel, increased air volume to add support throughout the travel, and higher overall ride height for more confidence when things get steep.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- Bolt-in torque cap adapters now included for use with standard hub end caps.
- Lightweight machined and anodized crown for premium looks and durability.
- Available in the Signature colorway Heavy Meadow Green or Ultimate High Gloss Black.
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel.
- Short fender compatibility. (RockShox fender included)
SPECIFICATIONS
| Wheel size | 27.5", 29" |
|---|---|
| Travel (mm) | 140mm, 150mm, 160mm |
| Damper Type | Charger 3.1 RC2 W/ButterCups |
| Fork offset | 37mm (27.5"), 44mm (27.5"), 44mm (29") |
| Color (FS) | Gloss Black, Heavy Meadow Green - Gloss |
| Axle | 15x110mm BOOST™ |
| Upper tube type | 35mm tapered wall aluminum |
| Volume reducer | 0/5 Tokens, 1/5 Tokens |
| Spring | DebonAir+ W/ButterCups |
| Crown OD (mm) | 59 |
| Weight Based On | 29" Maxle Stealth 160mm Travel 1.5" Taper Steerer, W/ButterCups |
| Weight (g) | 2028 |
