Professional Bottom Bracket Tool Kit

Our new tool kit for installing, removing and servicing Wheels Manufacturing bottom brackets.

Please click on the below videos:

https://youtu.be/nGv8xa3xm1o

https://youtu.be/bIi9zZURVNU

Kit includes our new bottom bracket socket tools for installing and removing our BB cups, along with new sealed bearing extractors for 22mm, 24mm and 30mm ID bearings.

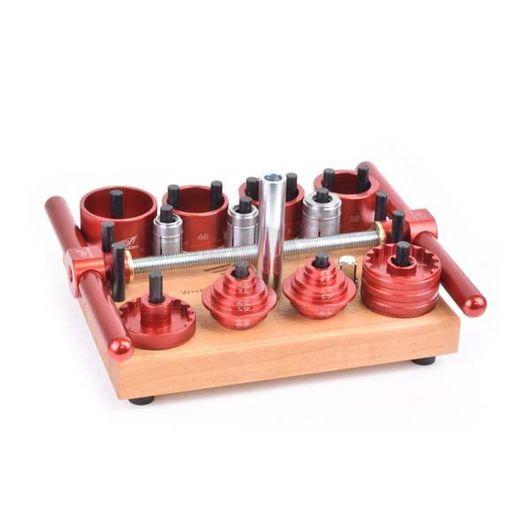

PRESS-9-PRO includes:

• T-Handles with 1/2" threaded rod
• (2) Universal bottom bracket drift (BB-OB)
• (1) 30mm ID sealed bearing extractor
• (1) 24mm ID sealed bearing extractor
• (1) 22mm ID sealed bearing extractor
• (1) receiver cup
• (1) 44mm receiver cup sleeve
• (1) 42mm receiver cup sleeve
• (1) 39mm receiver cup sleeve
• (1) bearing pusher shaft
• (1) 3/8" to 1/2" square drive adapter
• Wood base

COMPATIBILITY:

• Compatible with all Wheels Manufacturing bottom brackets with the following spline patterns:
• 48.5mm, 16-notch
• 44mm, 16-notch
• May be compatible with FSA MegaEVO BB cups, Shimano, SRAM/Truvativ, Campagnolo Ultra Torque and FSA.

• Bearing Extractors are compatible with 30mm, 24mm and 22mm ID sealed bearings. For use with handles and rod from:
• Universal Bottom Bracket Press (PRESS-7)
• Professional Bottom Bracket Press (PRESS-7-PRO)
