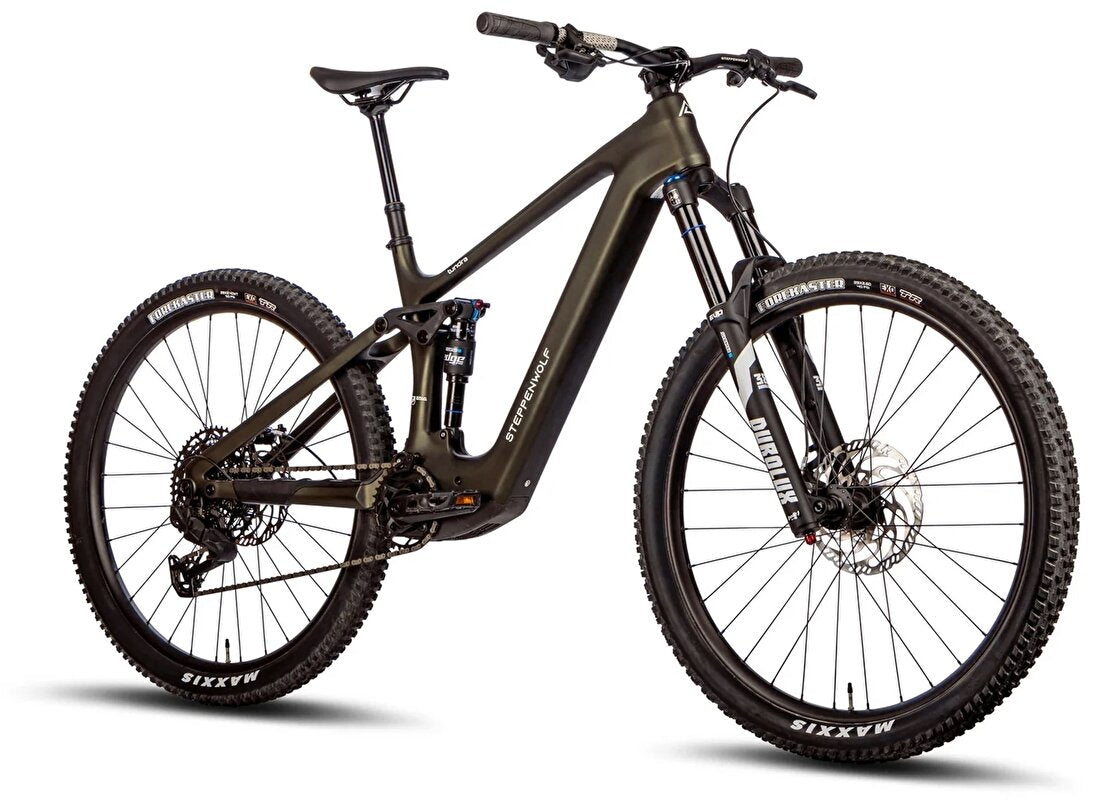

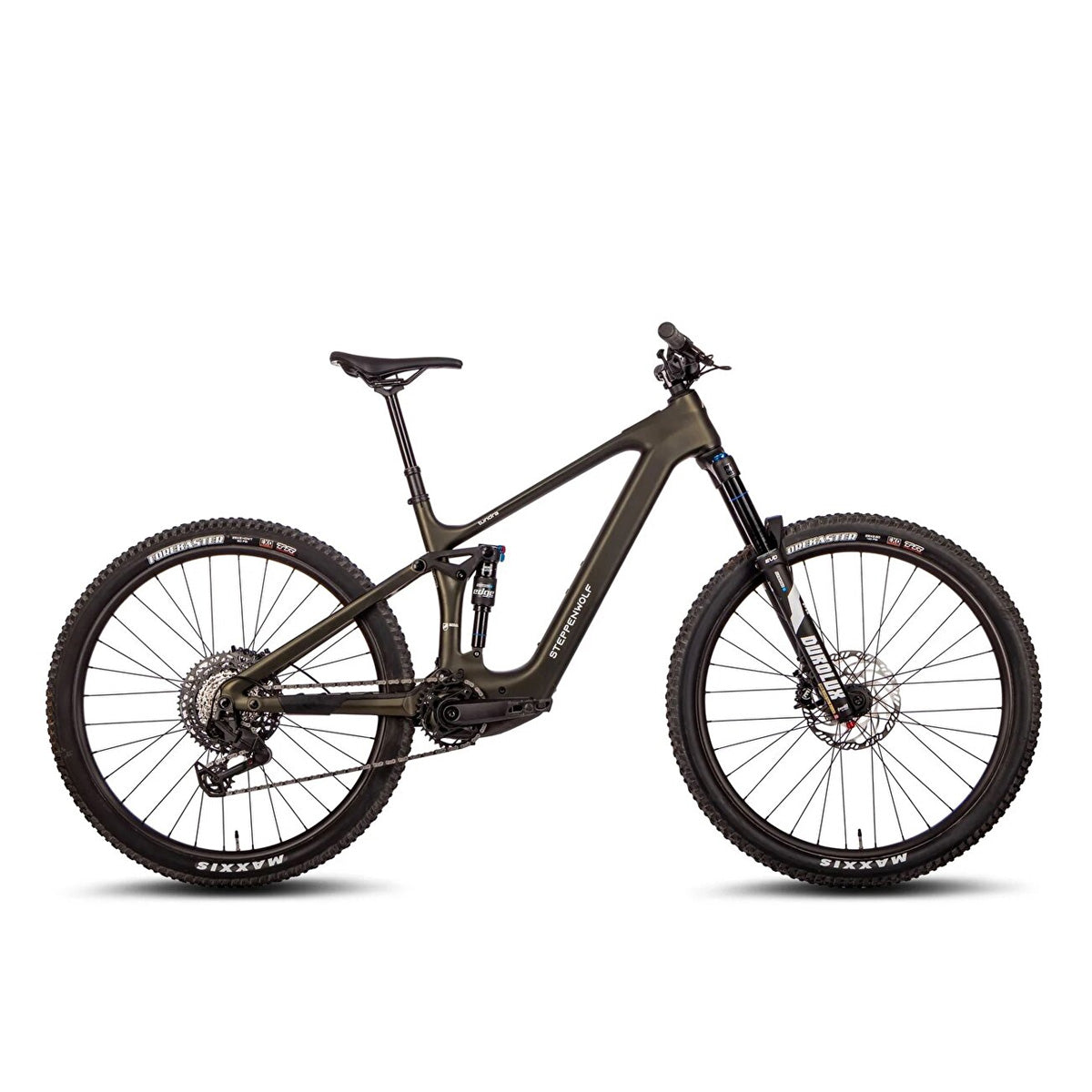

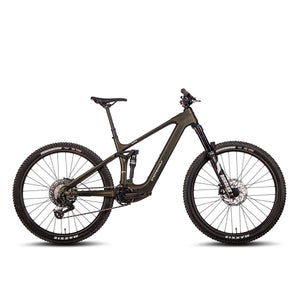

Steppenwolf Tundra 9.0 DJI

The high-quality e-MTB with a compact and powerful DJI Avinox M2S motor, carbon frame, 160 mm suspension and 800 Wh battery offers long range, stable performance and comfort even in technically demanding terrain.

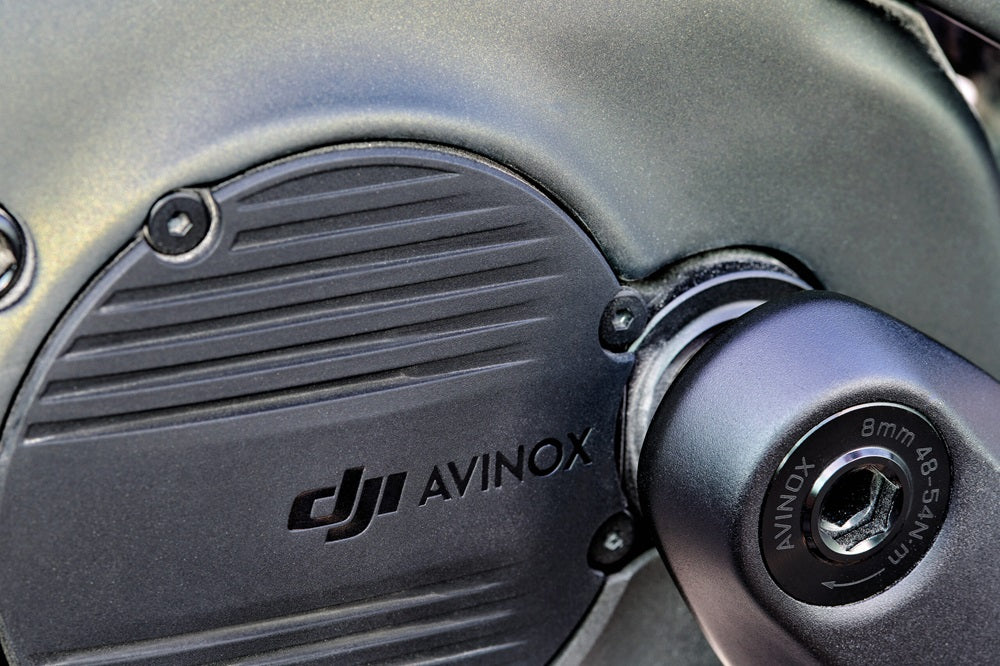

Avinox M2S drive unit – uncompromising peak of performance

The Avinox M2S drive unit represents the technological peak of the current market. Thanks to the use of technologies from the automotive segment, it achieves parameters that were unimaginable for such a compact motor (2.59 kg) until recently:

What does this mean in practice? The M2S offers the highest torque density in the world (57.9 Nm/kg). Combined with new batteries utilizing 4680 cells, it delivers brutal pull even on the steepest technical climbs without the bike losing its lightness and maneuverability. It is a motor for those who want maximum performance without any limits.

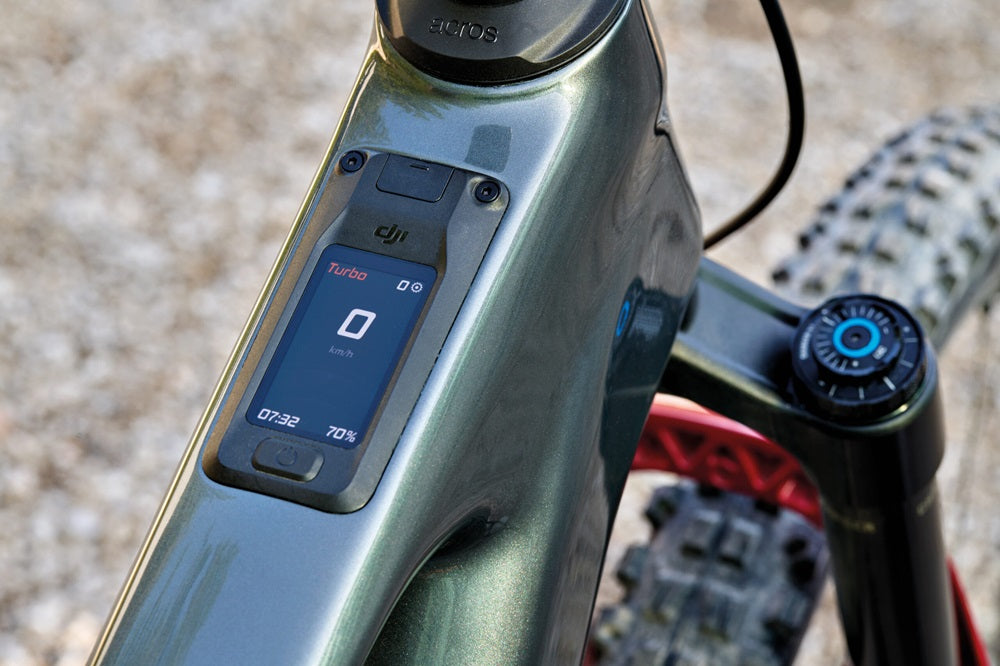

Display Avinox DP100

The display is integrated into the frame of the e-bike. It has a 2" OLED touch panel with a resolution of 326 ppi and a brightness of up to 800 nits, which automatically adjusts to the ambient lighting. It features GPS sensors, a gyroscope, a barometer and support for Bluetooth 5.1, ANT+ and LTE-Cat.1. It allows you to track your route, speed, cadence and performance with 8 GB of internal memory and synchronization via the app. Control is provided by one or two wireless controllers on the handlebars – the left one for setting the level of assistance and the right one for scrolling through the display (the right controller is only available on selected models). The USB-C port supports fast charging with a power output of up to 65 W.

SRAM Eagle 70 Transmission

Reliable 12-speed drivetrain delivers smooth and precise shifting, high durability and optimal performance for demanding trail and downhill conditions.

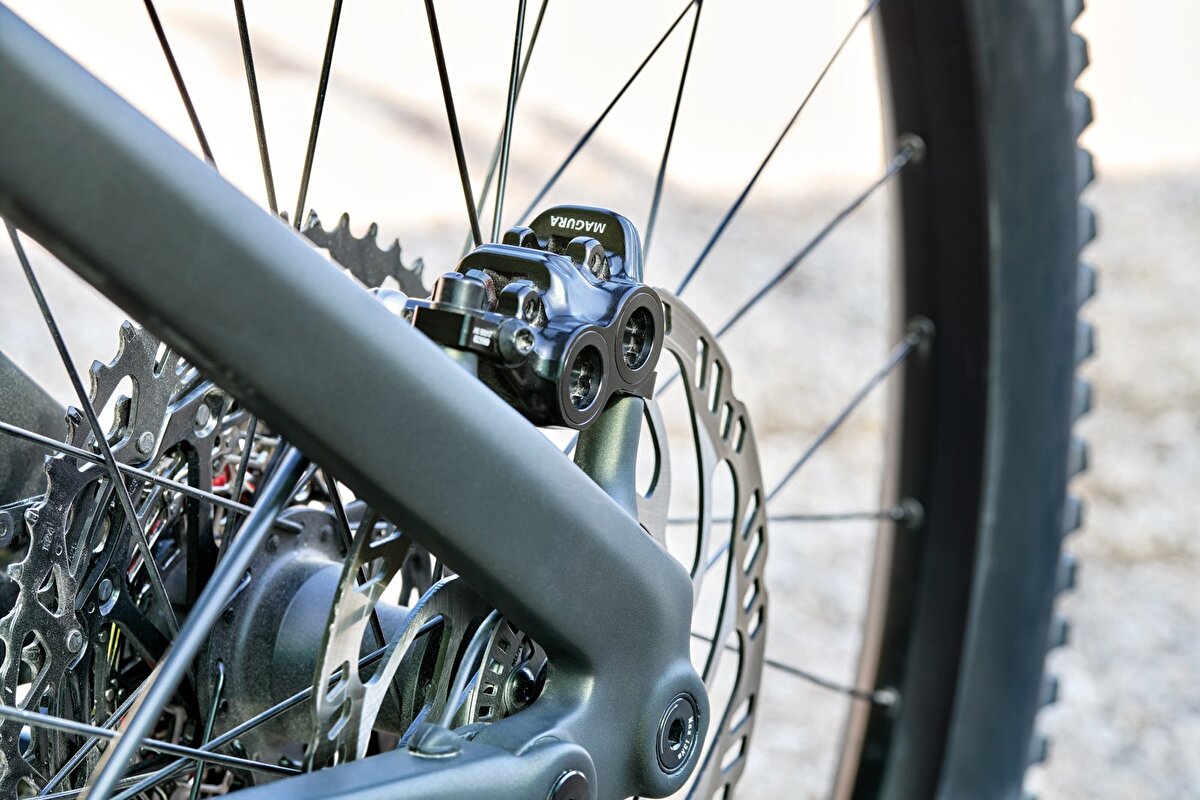

Magura MT5 brakes

These four-piston caliper brakes provide very powerful and well-dosed braking action. In conjunction with 203/203 mm discs, they offer high performance, great stability and confidence even on long, steep descents. The robust design ensures reliable and consistent braking even under heavy loads.

Specifications

• Frame: 29" Full-Suspension carbon frame
• Motor: Avinox M2S (150nm)
• Battery: Avinox FS800
• Display: Avinox DP100
• Fork: SR SUNTOUR Durolux 38-EVO-Boost 160mm

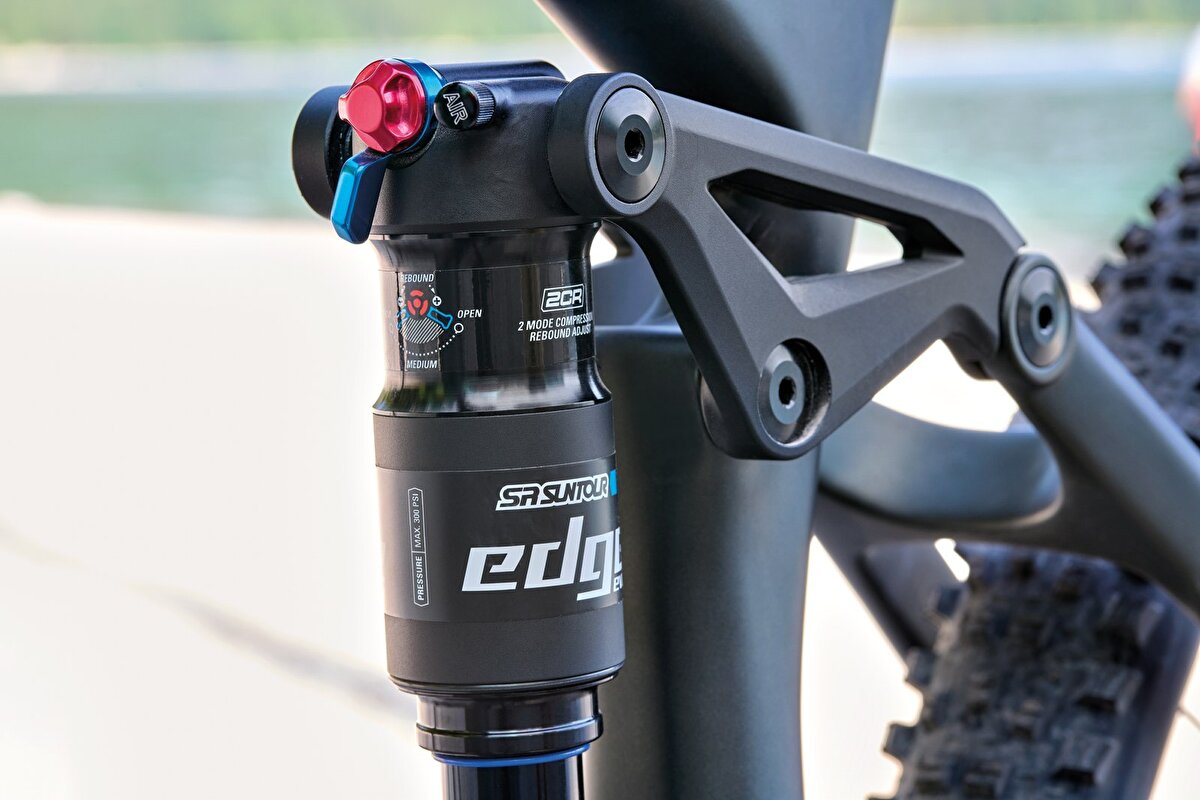

• Shock: SR SUNTOUR Edge-Evo 205x65 160mm
• Derailleur:  SRAM Eagle 70 Transmission
• Shifter: SRAM Eagle 70
• Cassette: SRAM CSXS1275
• Chain: SRAM CN Eagle T 70
• Cranks: Avinox 160 mm
• Brakes: MAGURA MT5
• Handlebars: STW MTB 780 mm handlebars
• Stem: STW MTB (40mm x 31.8mm)
• Headset: ACROS
• Grips: STW MTB
• Saddle: STW MTB
• Dropper Post: STW Dropper Post
• Pedals: STW MTB
• Wheels: RODI TRYP30 black anodized 29"
• Tires: Maxxis Forekaster TR
• Weight: 21.7kg

Geometry
