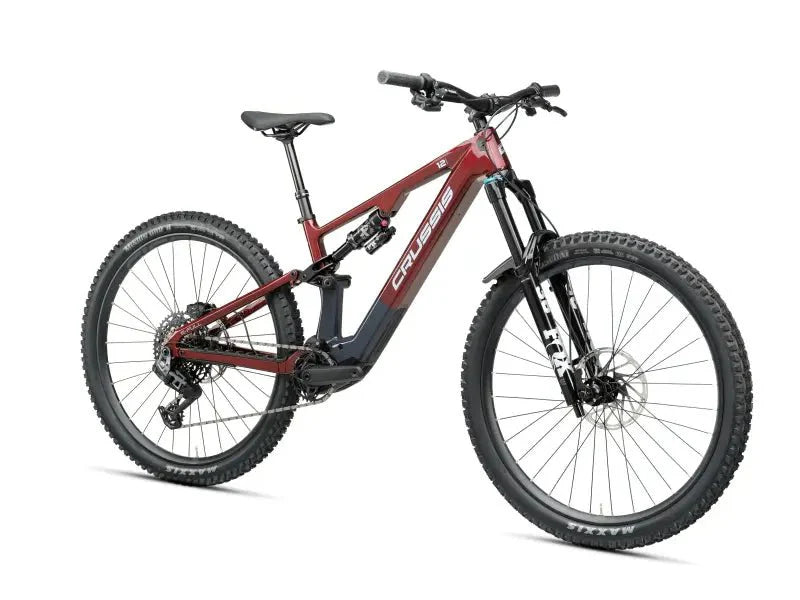

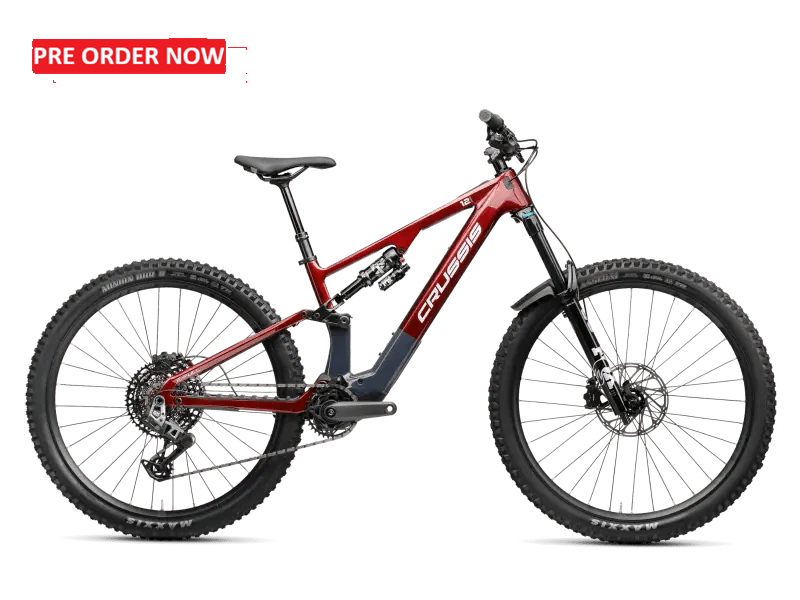

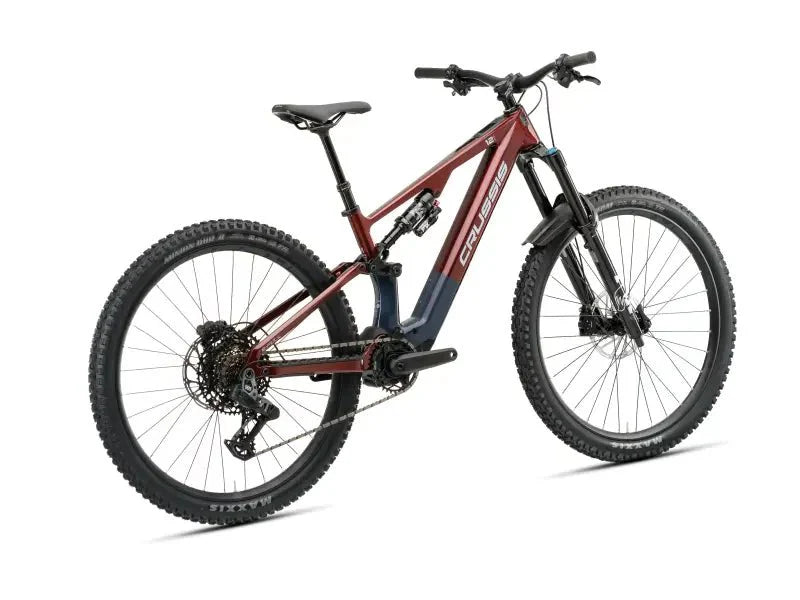

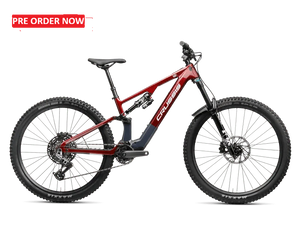

Crussis e-Full 12.11 eMTB

The e-Full 12.11 mountain e-bike raises the bar one level higher. Its carbon frame not only reduces weight but also provides exceptional stiffness and efficient power transfer. Paired with top-tier components, it is designed for riders demanding extreme performance on trails, technical terrain, or climbs.



At the core of the e-bike's power is the Avinox M2S 2026 motor with up to 150 Nm torque (BOOST mode) and a maximum drive power of 1300 W. This delivers outstanding dynamics, sensitive power modulation, and instant response.



Energy is supplied by an integrated Avinox 800 Wh (22.28 Ah) battery, providing sufficient range for all-day rides in the terrain. Thanks to GaN fast charging technology and compatibility with a 12 A charger, charging time is significantly reduced – from 0% to 75% in about 1.5 hours, and to 100% in 2 hours and 25 minutes.

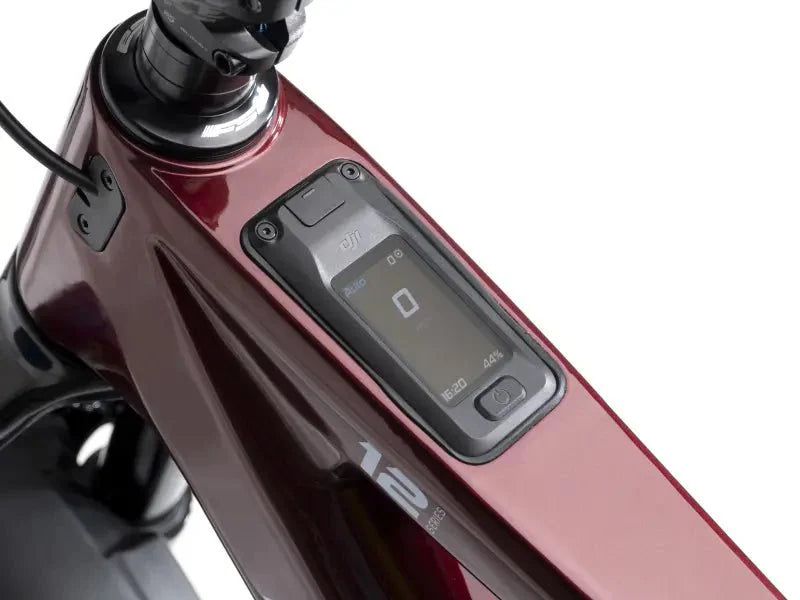

The integrated 2" OLED touchscreen Avinox DP100 display is clear and intuitive – offering everything from assistance to detailed system diagnostics. With two wireless controllers mounted directly on the handlebars for easier assistance selection and display browsing, the display is convenient to use during riding without the rider needing to take their hands off the bars.

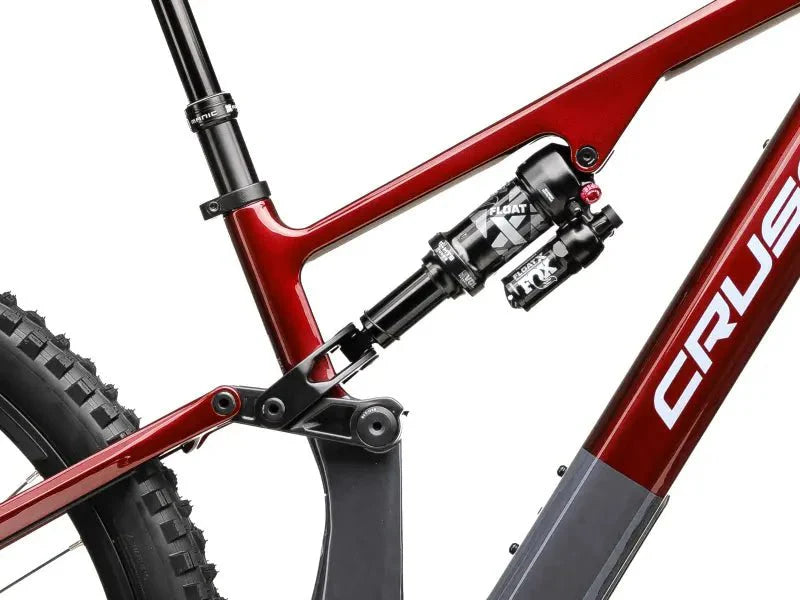

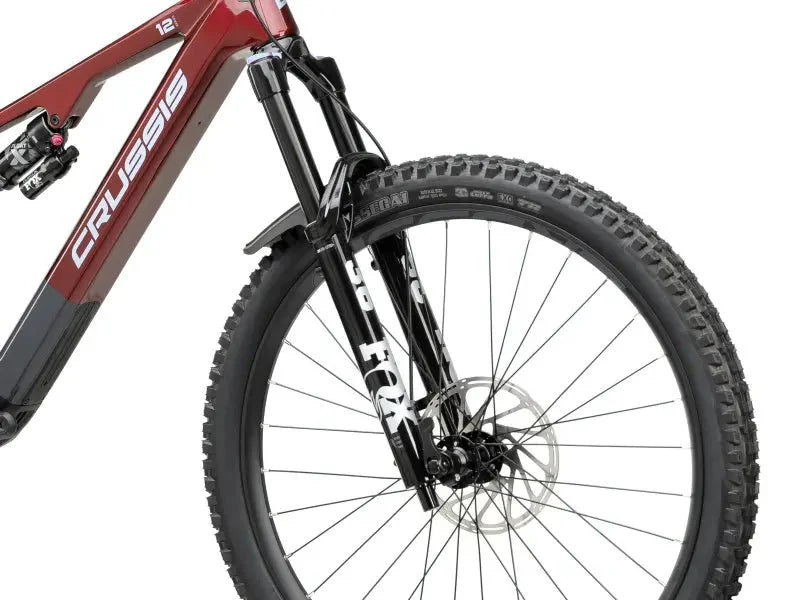

Suspension is fully prepared for demanding trails with a FOX Float 36 Grip fork (160 mm) upfront and a FOX Float X, 2pos, Evol LV shock (210x55 mm) in the rear. This combination ensures excellent sensitivity and shock absorption in any situation.

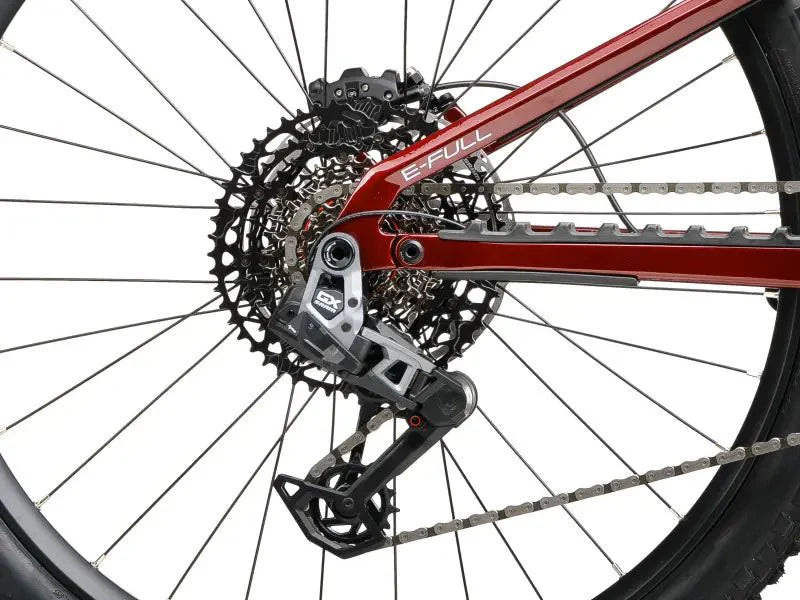

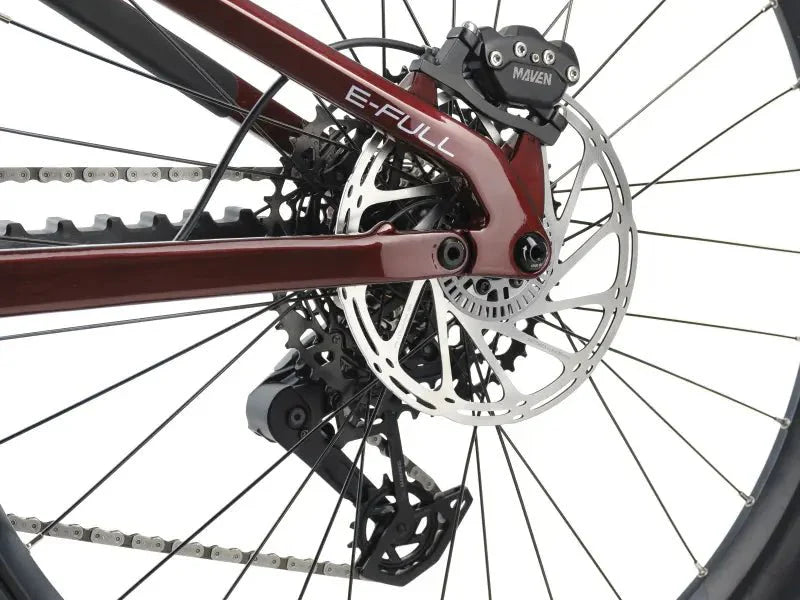

Gear shifting is handled by the top electronic SRAM GX Eagle AXS T-Type (1x12) groupset with a 10–52 tooth cassette. Safe braking is ensured by the new hydraulic SRAM Maven Base brakes with 200 mm rotors front and rear – strong and stable under all conditions.



MAXXIS ASSEGAI (front) and MINION DHR II (rear) tyres, both sized 29x2.50", hold grip even on rough terrain.

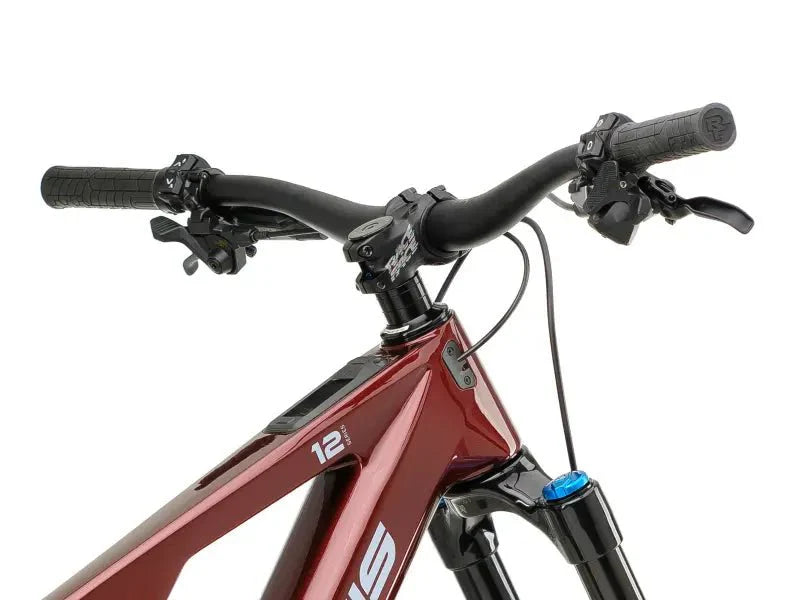

The e-bike is complemented by wide RaceFace Chester 780 mm handlebars, an X-Fusion Manic dropper post, and a comfortable SELLE ROYAL saddle. Optimised for maximum efficiency without limits.

E-System

• Motor: Avinox M2S 2026 250W (Max 1,300W) / 130Nm (150Nm in Boost Mode) / approx. 2.6kg
• Battery: Avinox 800Wh (22.28Ah) / 36V
• Display: Avinox DP100 2" OLED Touchscreen
• Charger: 508W GaN Fast Charge / 0–75% approx. 1.5hrs / 0–100% approx. 2hrs 25min
• Assist Modes: Eco / Trail / Turbo / Auto / Boost
• Pedal Sensor: Torsion
• Walk Assist: Yes
• USB: USB-C (65W Fast Charge)

Frame & Suspension

• Frame: Carbon
• Rear Suspension: FOX Float X 2pos Evol LV 210x55
• Fork: FOX Float 36 Grip 29" BOOST 160mm Travel / 44mm Offset

Cockpit & Seatpost

• Handlebar: RaceFace Chester AL 35mm / 780mm Width / 35mm Rise
• Stem: RaceFace Chester AL 40mm / 0° Angle
• Seatpost: X-Fusion Manic 30.9mm / S 125mm / M 150mm / L 170mm / XL 190mm
• Seatpost Clamp: Crussis AL 34.9mm
• Saddle: Selle Royal
• Headset: FSA NO.57/52 Tapered 1-1/8" – 1.5"
• Grips: RaceFace Getta 30mm

Brakes & Wheels

• Brakes: SRAM Maven Base Hydraulic 200mm Rotor (Front & Rear)
• Rims: Crussis 29" Disc Double Wall 30mm
• Hub (Front): Crussis Disc 32H BOOST Thru-Axle 15x110mm
• Hub (Rear): Crussis Disc 32H BOOST Thru-Axle 12x148mm
• Tire (Front): Maxxis Assegai 29x2.50
• Tire (Rear): Maxxis Minion DHR II 29x2.50

Drivetrain

• Shifter: SRAM GX Eagle AXS T-Type 12-Speed
• Derailleur: SRAM AXS Rocker Controller Right MMX
• Crankset: Samox ISIS 155/160mm
• Chain: SRAM GX Eagle T-Type Flattop 126 Links 12-Speed
• Cassette: SRAM XS-1270 Eagle T-Type 10-52T
• Chainring: SRAM T-Type Eagle 34T

Weight & Misc

• Load Capacity: 120kg
• Range: Up to 157km
• Control: Avinox Wireless Controller (Left & Right)
• Control Unit: Integrated in Motor
