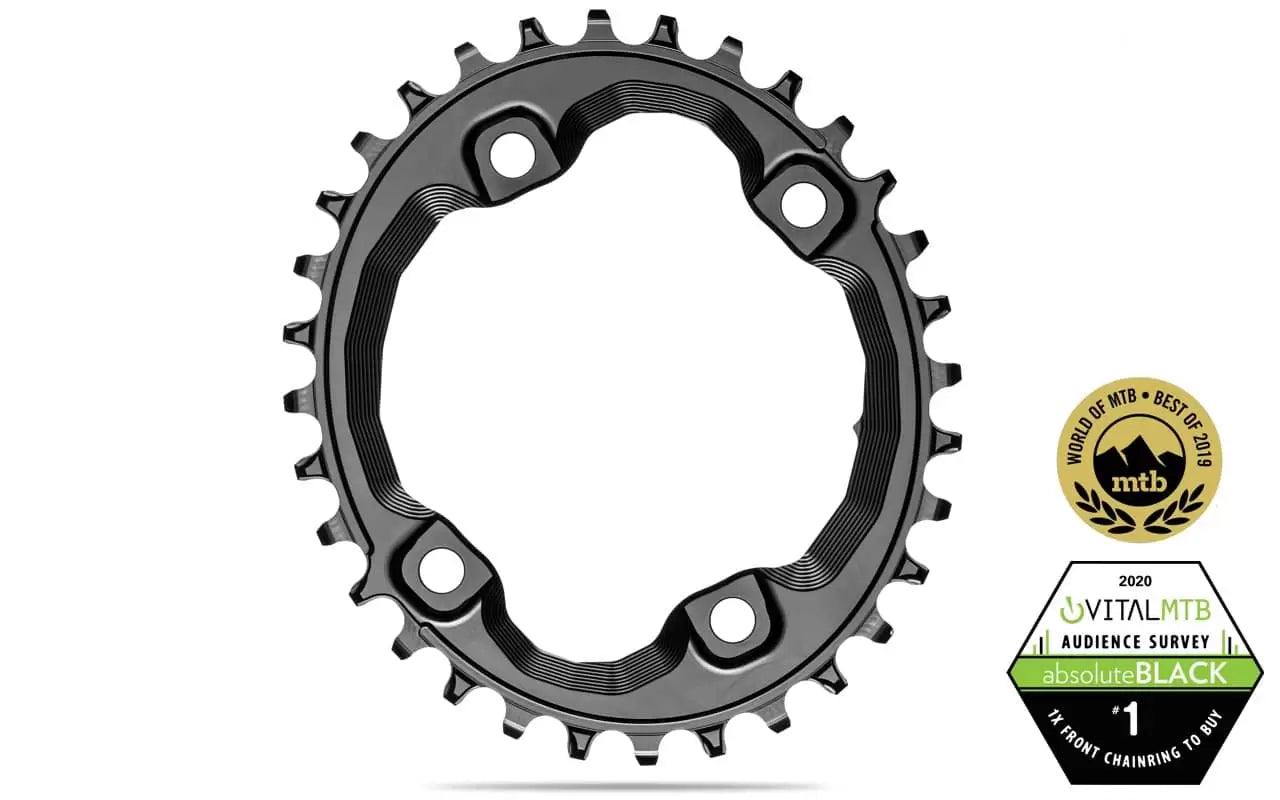

Absolute Black 30T Oval 96bcd n/w 1x Chainring for XT M8000 / SLX M7000
Tax included
Shipping calculated at checkout
Only 1 in stock
|
Size (Mass +/-1g): |
30T (44g), 32T (50g), 34T (60g), 36T (69g) |
|
Color |
Black |
|
Compatibility |
Fits Shimano XT M8000, SLX M7000, MT700 and Deore M6000, M5100 & M4100 cranksets 1X and 2X only. Boost and non-boost. Not compatible with Sram Flat Top chain or Shimano HG+ chain. |
|
Material |
cnc machined 7075 Txxx Aluminum. Long-lasting construction! Type II anodizing |
|
Chainline |
Dependent on the crank model (1 or B1/B2). Every crank model has different axle length, but same chainrings. |
|
Mounting holes |
4 x 96mm BCD Asymmetrical design. |
|
Ovality |
Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending |
All 4 sizes have built-in standoffs to provide the ideal 1X chainline. IMPORTANT - Use provided bolts to mount the chainring
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):
30T: 134mm ; 32T: 143mm ; 34T: 151mm
