Description

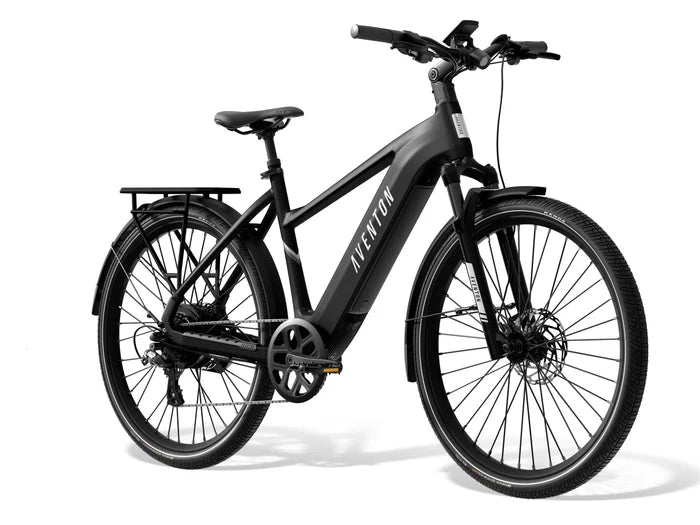

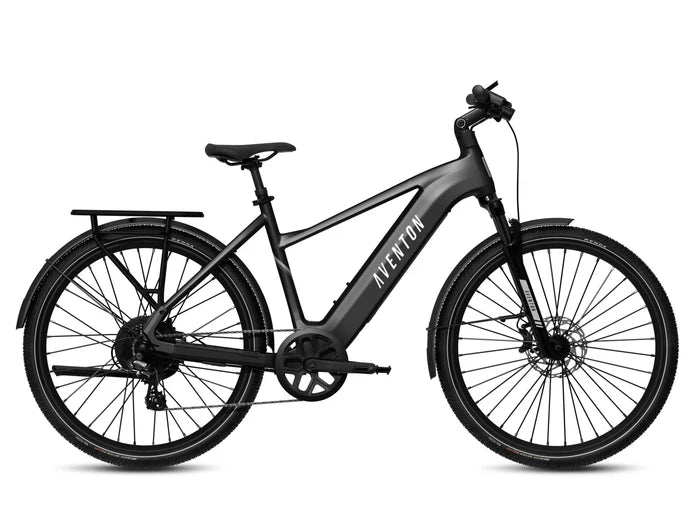

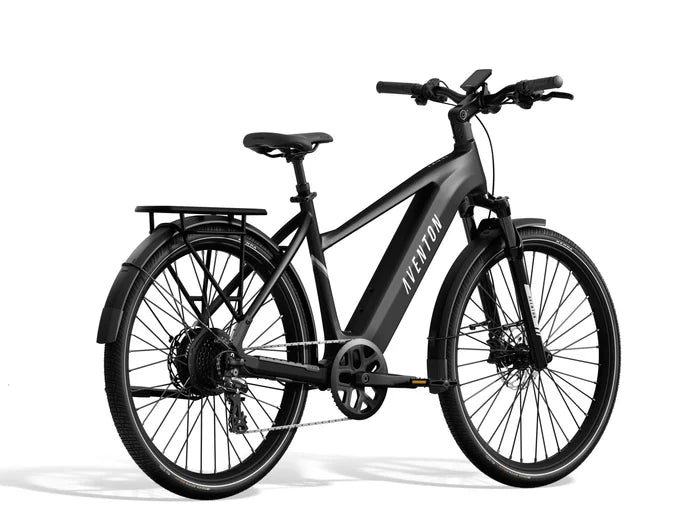

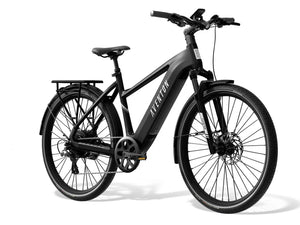

From the USA's #1 e-bike brand, take your commutes to the next LEVEL. The all-new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities allow user adjustments. Built-in indicators provide better safety when riding around town. Ditch the traffic, and elevate your daily commutes with the Level 3. connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date.
Specifications
TOP SPEED
- 32 kph on Throttle
- 45 kph on Pedal Assist
MOTOR
- 300W torque sensing hub drive
THROTTLE
- Aventon LH Handlebar Mounted
BATTERY
- Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
MAX. RIDER WEIGHT
- 136 kg
RECOMMENDED RIDER HEIGHT
- 5'3" - 6'4" (178 - 193 cm)
FRAME SIZE
- Large 50cm
- Small/Medium 44cm
TYRES
- Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 tyres
BRAKES
- Tektro HD-E3520 Hydraulic disc brakes, front and rear
WATER RESISTANCE
- IPX6
CHARGER
- 36V Output: 42V/ 4A, 5 hours charging time
CLASS
- Class 2 Ebike
FRAME
- 6061 Aluminum, Gravity Cast Front Triangle
CHAIN
- CHAIN KMC 'X8' 8SPD 1/2" x 3/32" SILVER/GREY
FORK
- Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
REAR SPACING
- 142mm
FORK SPACING
- 110mm
FRONT WHEEL
- 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
REAR WHEEL
- 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
DISPLAY
- Aventon BC280
BATTERY WEIGHT
- 3.9 KG
SENSORS
- Double Sided Bottom Bracket Torque Sensor
LIGHTS
- Front and rear lights integrated
REAR DERAILLEUR
- Shimano Altus RD-M310
SHIFTER
- Shimano 8 Speed Trigger SL-M315-8R
CASSETTE
- 12-32T / 8 Speed Shimano CS HG200-8
CHAINRING
- 48T
CRANKSET
- 3pc, 170mm crank arm
BOTTOM BRACKET
- Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
PEDALS
- 9/16" Composite Platform
SADDLE
- Aventon Saddle
SEATPOST
- 30.9mm Aventon Suspension Seatpost with 50mm travel
HANDLEBARS
- Aluminum 31.8mm, 680mm
GRIPS
- Aventon Lock on grips
HEADSET
Sealed Bearing Headset
FENDERS
- Included
REAR RACK
- Included (27 KG weight limit)
